Nichicon
UMV1E330MFD1TP
Cap Aluminum Lytic 33uF 25V 20% (6.3 X 5mm) Radial 2.5mm 48mA 5000h 105°C Ammo
PackageRadial
Capacitance33uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UMV1E330MFD1TP technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Diameter
5mm
Height - Seated (Max)
0.236inch
Lead Free
Lead Free
Lead Pitch
0.098inch
Length
11mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
48mA
RoHS Compliant
Yes
Series
MV
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UMV1E330MFD1TP Datasheet
Download the complete datasheet for Nichicon UMV1E330MFD1TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

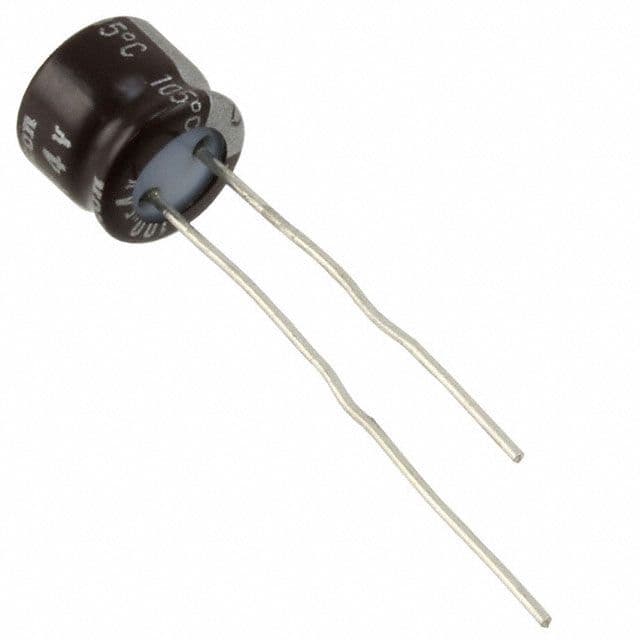

Product Images
