Nichicon
UPA1A102MPD3TD
Cap Aluminum Lytic 1000uF 10V 20% (8 X 15mm) Radial 3.5mm 1240mA 4000h 105°C Automotive Ammo
PackageRadial
Capacitance1mF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPA1A102MPD3TD technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Height - Seated (Max)
0.689inch
Impedance
49mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
930mA
RoHS Compliant
Yes
Series
UPA
Termination
Radial
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPA1A102MPD3TD Datasheet
Download the complete datasheet for Nichicon UPA1A102MPD3TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

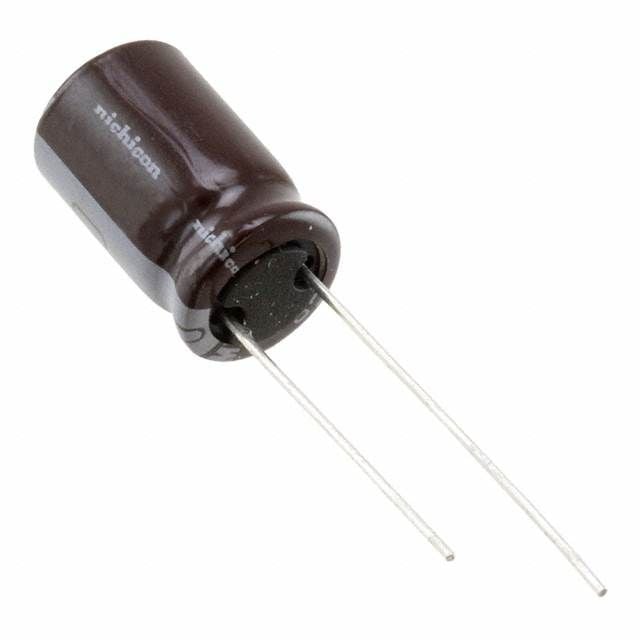

Product Images
