Aluminum electrolytic capacitor, 150µF capacitance, 400V DC rated voltage, and 20% tolerance. Features a radial package with 7.5mm lead pitch, 0.8mm lead diameter, and straight lead style for through-hole PCB mounting. Operates within a temperature range of -25°C to 105°C, offering 2000 hours of life at rated conditions. Ripple current capability is 890mA, with a leakage current of 2.5A. Dimensions are 18mm diameter and 31.5mm length.
PackageRadial
Voltage400V
Capacitance150uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon UPH2G151MHD6 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Height | 40mm |
| Height - Seated (Max) | 1.319inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.295inch |
| Lead/Base Style | Straight |
| Leakage Current | 2.5A |
| Length | 31.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 890mA |
| RoHS Compliant | Yes |
| Series | UPH |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPH2G151MHD6 Datasheet
Download the complete datasheet for Nichicon UPH2G151MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

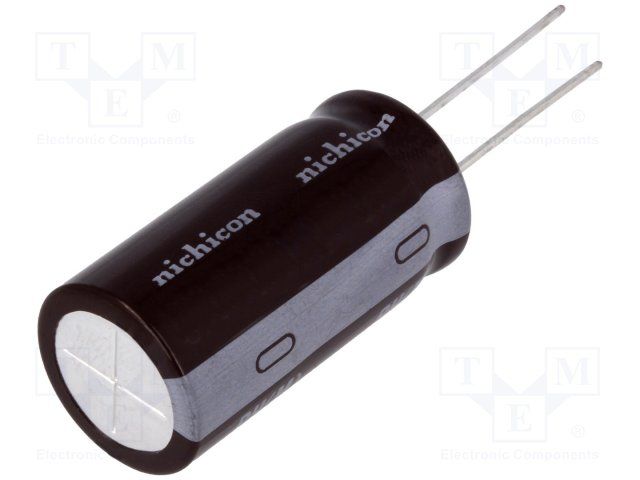

Product Images
