Nichicon
UPJ1A152MHD6TN
Cap Aluminum Lytic 1500uF 10V 20% (16 X 15mm) Radial 7.5mm 1190mA 5000h 105°C Ammo
PackageRadial
Capacitance1.5mF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1A152MHD6TN technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Height - Seated (Max)
0.65inch
Impedance
78mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Ripple Current
1.19A
RoHS Compliant
Yes
Series
PJ
Tolerance
20%
Voltage Rating
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1A152MHD6TN Datasheet
Download the complete datasheet for Nichicon UPJ1A152MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

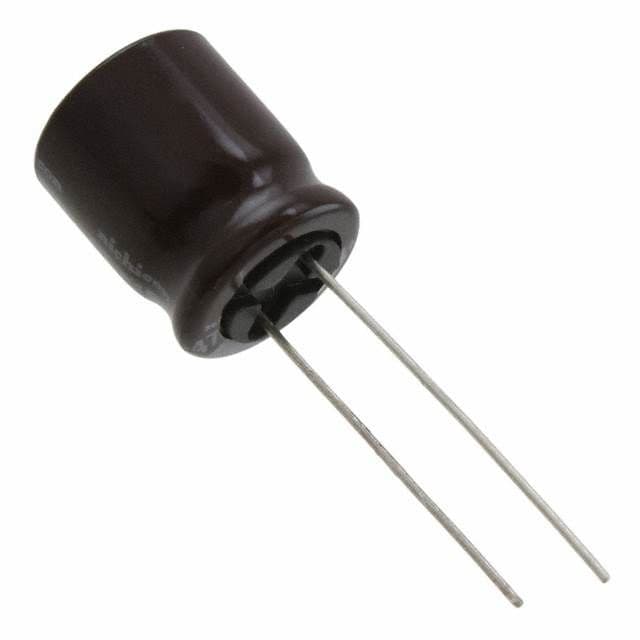

Product Images
