Nichicon
UPJ1C181MED
Cap Aluminum Lytic 180uF 16V 20% (6.3 X 15mm) Radial 2.5mm 285mA 2000h 105°C Bulk
PackageRadial
Capacitance180uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1C181MED technical specifications.
General
Capacitance
180uF
Package/Case
Radial
Diameter
6.3mm
Height
15mm
Height - Seated (Max)
0.63inch
Impedance
310mR
Lead Pitch
2.5mm
Leakage Current
86.4uA
Length
15mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
285mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1C181MED Datasheet
Download the complete datasheet for Nichicon UPJ1C181MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

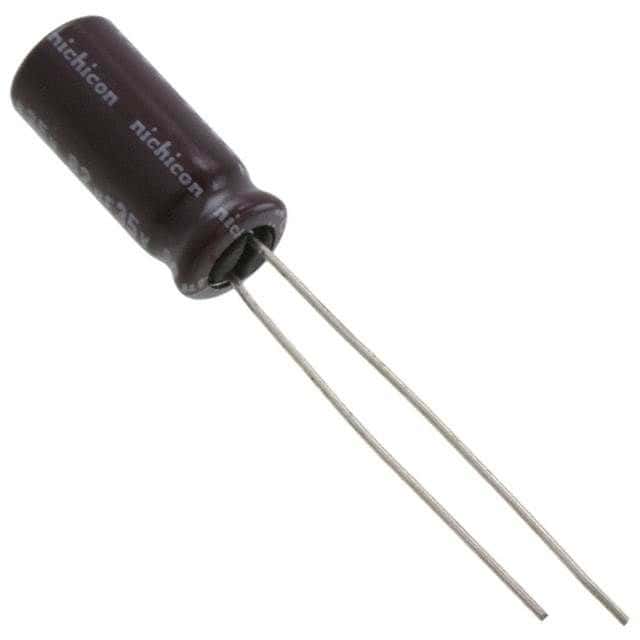

Product Images
