Nichicon
UPJ1C561MHD6TO
Cap Aluminum Lytic 560uF 16V 20% (12.5 X 15mm) Radial 5mm 745mA 5000h 105°C Ammo
PackageRadial
Capacitance560uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1C561MHD6TO technical specifications.
General
Capacitance
560uF
Package/Case
Radial
Height - Seated (Max)
0.65inch
Impedance
130mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
745mA
RoHS Compliant
Yes
Series
UPJ
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1C561MHD6TO Datasheet
Download the complete datasheet for Nichicon UPJ1C561MHD6TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

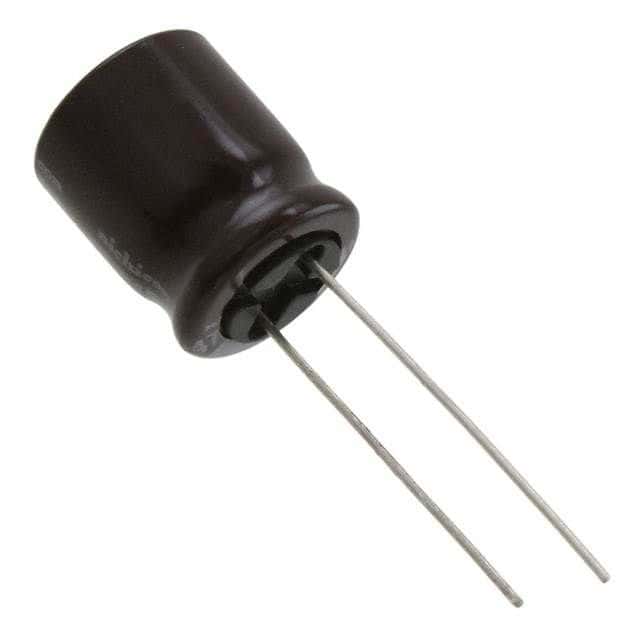

Product Images
