Nichicon
UPJ1H220MED1TD
Cap Aluminum Lytic 22uF 50V 20% (6.3 X 11mm) Radial 2.5mm 100mA 2000h 105°C Ammo
PackageRadial
Capacitance22uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1H220MED1TD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Diameter
5mm
Impedance
910mR
Length
11mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
UPJ
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1H220MED1TD Datasheet
Download the complete datasheet for Nichicon UPJ1H220MED1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

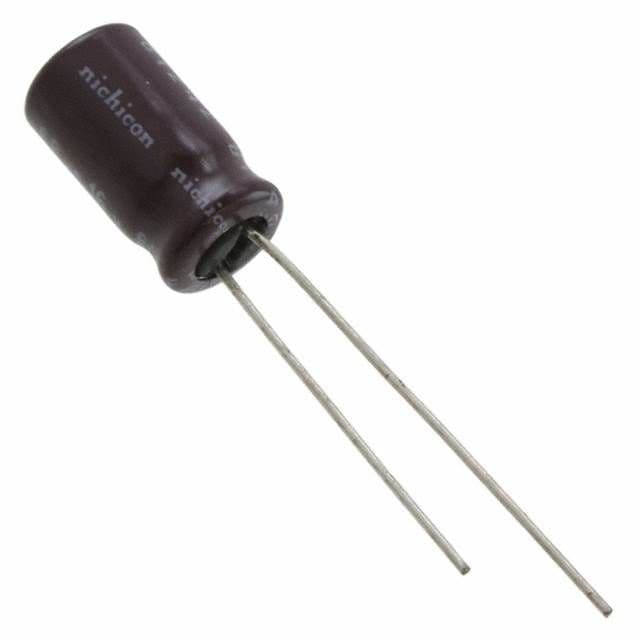

Product Images
