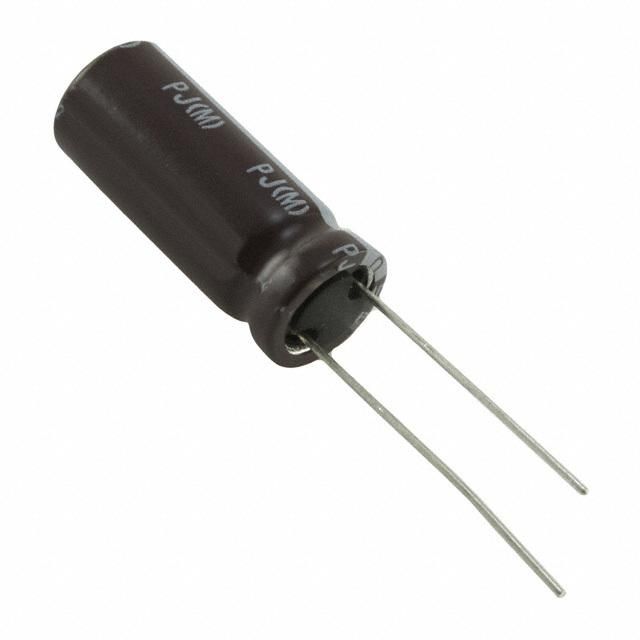

Aluminum electrolytic capacitor with 6.8µF capacitance and 50V DC rating. Features a 20% tolerance, 2.5Ω impedance, and 45mA ripple current capability. This radial component offers a 2000-hour life at 105°C, with a minimum operating temperature of -55°C. Dimensions include a 5mm diameter and 11mm height, with a 2mm lead pitch for through-hole mounting.
PackageRadial
Capacitance6.8uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1H6R8MDD technical specifications.
General
Capacitance
6.8uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
Height
11mm
Height - Seated (Max)
0.472inch
Impedance
2.5R
Lead Pitch
2mm
Leakage Current
10.2uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
45mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
