Standard aluminum electrolytic capacitor with 100µF capacitance and 35V voltage rating. Features a 20% tolerance, 305mA ripple current, and 260mΩ impedance. This radial component measures 8mm in diameter and 11.5mm in height, with a 3.5mm lead pitch. Designed for through-hole mounting, it operates from -55°C to 105°C with a 3000-hour life rating.
PackageRadial
Capacitance100uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1V101MPD1TD technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
11.5mm
Impedance
260mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Ripple Current
305mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1V101MPD1TD Datasheet
Download the complete datasheet for Nichicon UPJ1V101MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

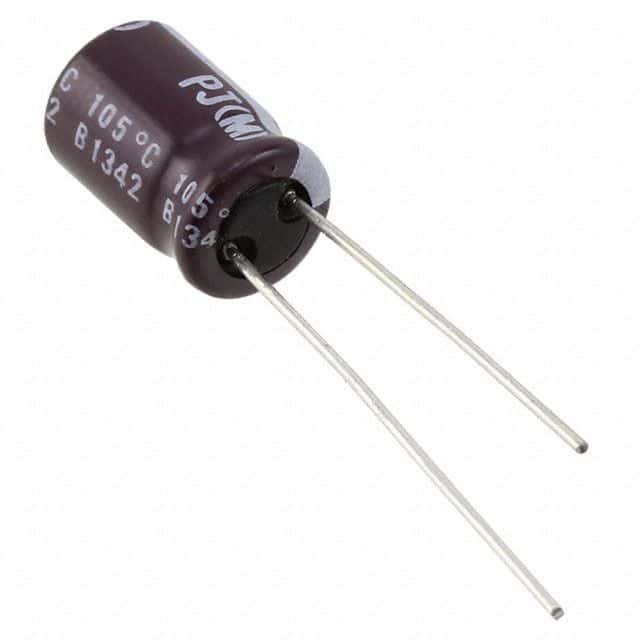

Product Images
