Technical Specifications
Nichicon UPJ2A101MHD6TN technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 15mm |
| Impedance | 170mR |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | UPJ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPJ2A101MHD6TN Datasheet
Download the complete datasheet for Nichicon UPJ2A101MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

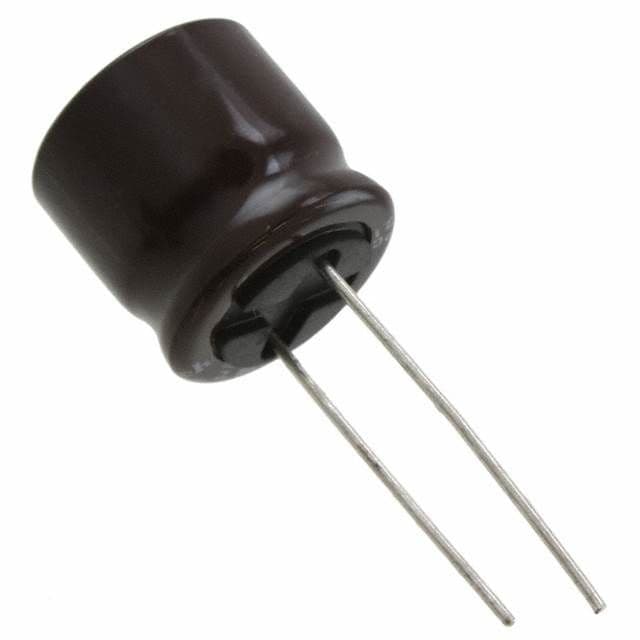

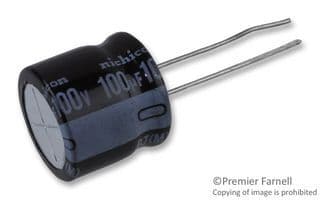

Product Images
