120µF radial aluminum electrolytic capacitor, 100V DC rated voltage, 20% tolerance. Features 531mA ripple current, 140mΩ impedance, and a 5000-hour life at 105°C. Dimensions are 16mm diameter, 15mm height, with a 7.5mm lead pitch. Through-hole mounting with radial termination.
PackageRadial
Capacitance120uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ2A121MHD6TN technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 15mm |
| Height - Seated (Max) | 0.65inch |
| Impedance | 140mR |
| Lead Pitch | 7.5mm |
| Length | 15mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 531mA |
| RoHS Compliant | Yes |
| Series | PJ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPJ2A121MHD6TN Datasheet
Download the complete datasheet for Nichicon UPJ2A121MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

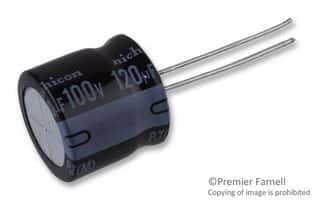

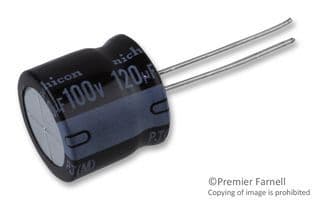

Product Images
