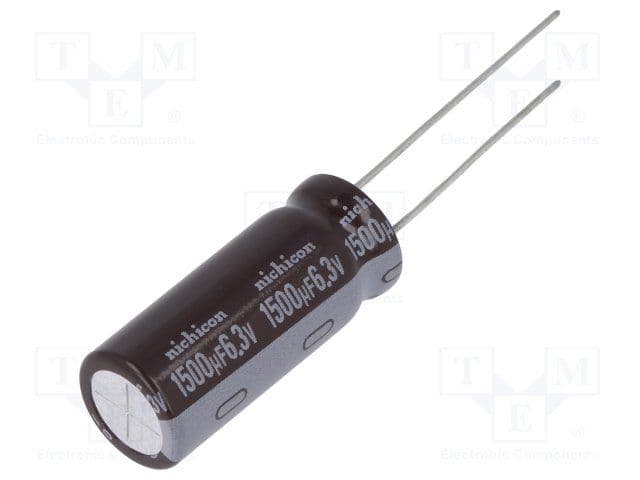

This 10mm radial aluminum electrolytic capacitor has a capacitance of 1.5mF and a voltage rating of 6.3V with a tolerance of 20%. It operates within a temperature range of -55°C to 105°C. The capacitor is packaged in bulk with 200 units per package and is RoHS compliant. It has a diameter of 10mm and a height of 25mm, with a lead pitch of 5mm and a length of 25mm. The impedance is 55mR and the ripple current is 1.09A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPM0J152MPD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Diameter | 10mm |
| Height | 25mm |
| Impedance | 55mR |
| Lead Pitch | 5mm |
| Length | 25mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.09A |
| RoHS Compliant | Yes |
| Series | UPM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| RoHS | Compliant |
