This 16mm radial aluminum electrolytic capacitor has a capacitance of 1.8mF and a voltage rating of 6.3V with a tolerance of 20%. It has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. The capacitor is packaged in bulk and is not radiation hardened. It is RoHS compliant and has a lead pitch of 7.5mm and a length of 15mm.
PackageRadial
Capacitance1.8mF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM0J182MHD6 technical specifications.
General
| Capacitance | 1.8mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Height | 15mm |
| Impedance | 55mR |
| Lead Pitch | 7.5mm |
| Length | 15mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.14A |
| RoHS Compliant | Yes |
| Series | UPM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM0J182MHD6 Datasheet
Download the complete datasheet for Nichicon UPM0J182MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

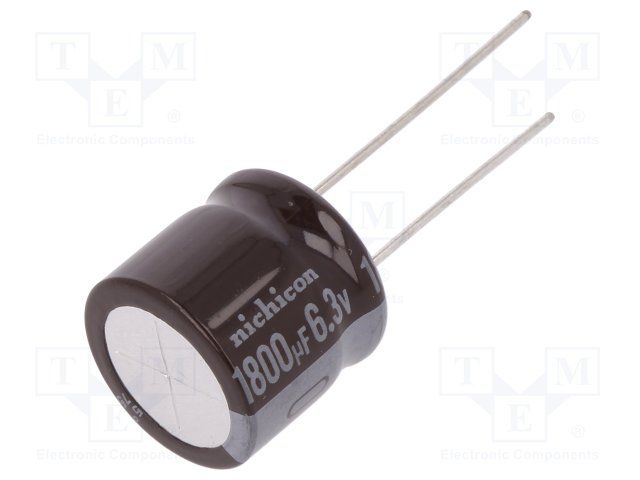

Product Images
