Nichicon
UPM0J391MPD
Cap Aluminum Lytic 390uF 6.3V 20% (8 X 11.5mm) Radial 3.5mm 345mA 3000h 105°C Bulk
PackageRadial
Capacitance390uF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM0J391MPD technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
8mm
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
170mR
Lead Pitch
3.5mm
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
345mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM0J391MPD Datasheet
Download the complete datasheet for Nichicon UPM0J391MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

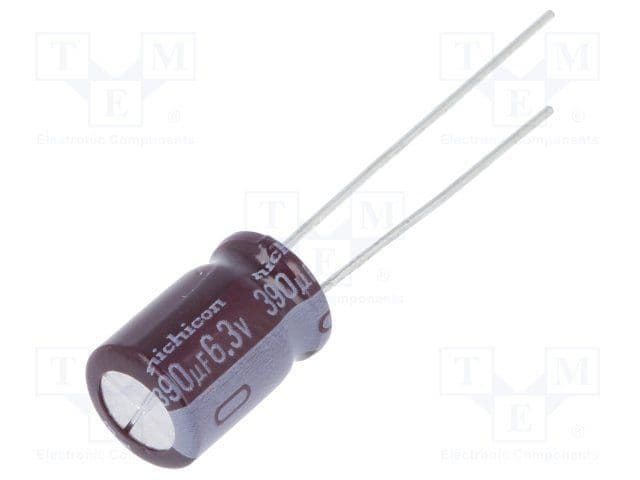

Product Images
