Nichicon
UPM0J561MPD
Nichicon UPM0J561MPD Radial Aluminum Electrolytic Capacitor 560uF 6.3V 20% 3000h 105°C
The Nichicon UPM0J561MPD is a radial aluminum electrolytic capacitor with a capacitance of 560uF and a voltage rating of 6.3V. It has a tolerance of 20% and a life of 3000 hours. The capacitor is rated for operation up to 105°C and is available in bulk packaging with 200 units per package. It is not radiation hardened and is compliant with RoHS regulations.
PackageRadial
Capacitance560uF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM0J561MPD technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Height | 15mm |
| Impedance | 120mR |
| Lead Pitch | 3.5mm |
| Length | 15mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 480mA |
| RoHS Compliant | Yes |
| Series | UPM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM0J561MPD Datasheet
Download the complete datasheet for Nichicon UPM0J561MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

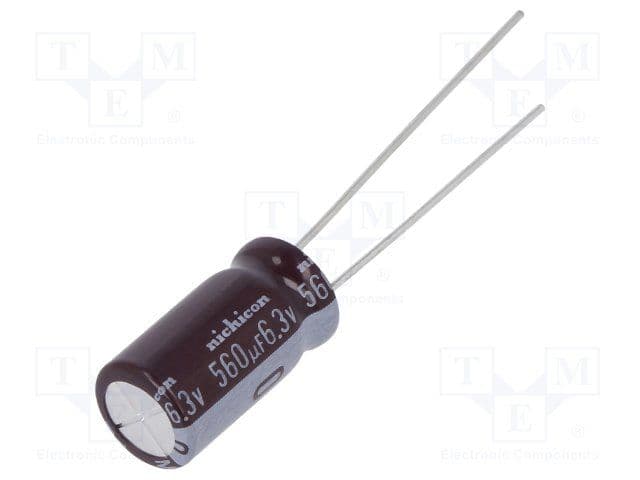

Product Images
