Technical Specifications
Nichicon UPM0J822MHD6 technical specifications.
General
| Capacitance | 8.2mF |
| Package/Case | Radial |
| Diameter | 18mm |
| Features | General Purpose |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Impedance | 25mR |
| Lead Pitch | 7.5mm |
| Length | 31.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 5000°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.15A |
| RoHS Compliant | Yes |
| Series | PM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM0J822MHD6 Datasheet
Download the complete datasheet for Nichicon UPM0J822MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

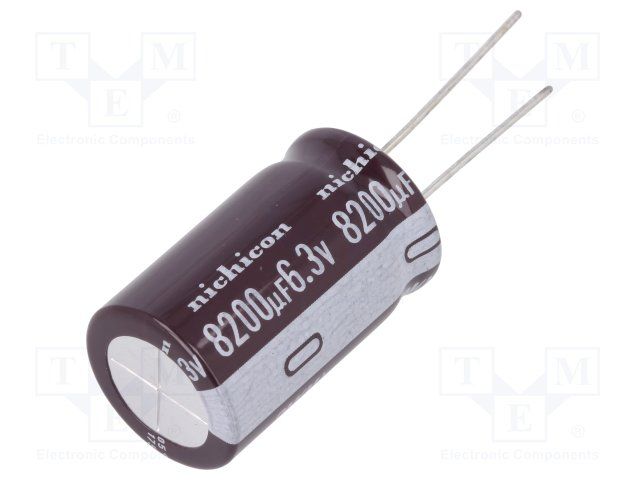

Product Images
