Nichicon
UPM1A122MHD6
Cap Aluminum Lytic 1200uF 10V 20% (12.5 X 15mm) Radial 5mm 930mA 5000h 105°C Bulk
PackageRadial
Capacitance1.2mF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1A122MHD6 technical specifications.
General
Capacitance
1.2mF
Package/Case
Radial
Diameter
12.5mm
Height
15mm
Impedance
60mR
Lead Pitch
5mm
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
930mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1A122MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1A122MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

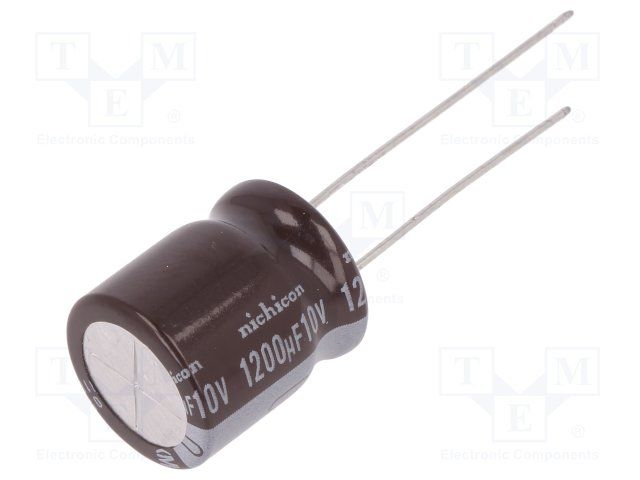

Product Images
