Aluminum electrolytic capacitor with 470µF capacitance and 10V DC rated voltage. Features 20% tolerance, 120mΩ impedance, and 475mA ripple current. Radial package with 3.5mm lead pitch, 8mm diameter, and 15mm height. Operates from -55°C to 105°C with a 3000-hour life expectancy. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UPM1A471MPD technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.19%
Height
15mm
Height - Seated (Max)
0.65inch
Impedance
120mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
4uA
Length
15mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
475mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1A471MPD Datasheet
Download the complete datasheet for Nichicon UPM1A471MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

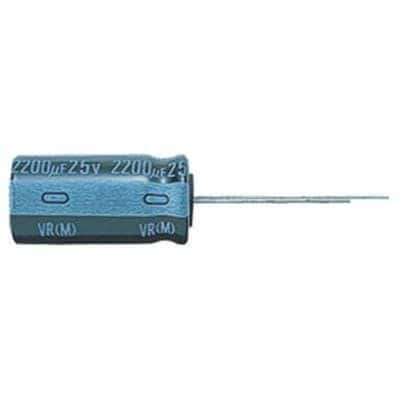

Product Images
