Nichicon
UPM1C222MHD6TN
Cap Aluminum Lytic 2200uF 16V 20% (16 X 20mm) Radial 7.5mm 1620mA 5000h 105°C Ammo
PackageRadial
Capacitance2.2mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1C222MHD6TN technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Diameter
16mm
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
33mR
Lead Pitch
7.5mm
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
1.62A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C222MHD6TN Datasheet
Download the complete datasheet for Nichicon UPM1C222MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

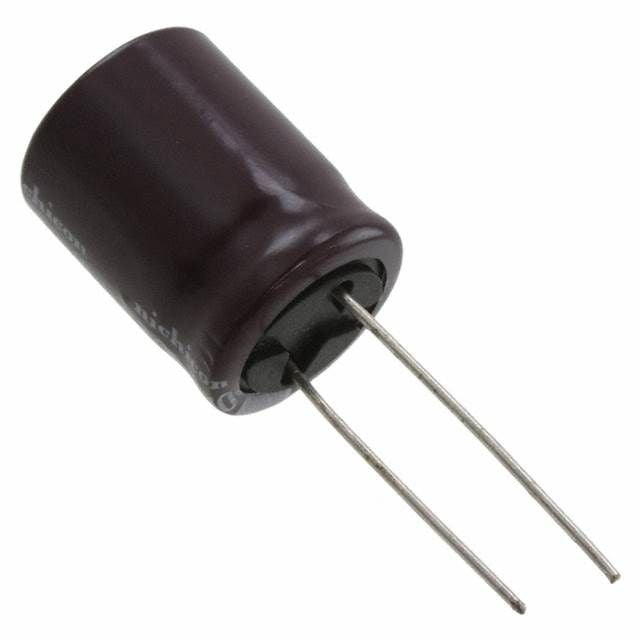

Product Images
