Nichicon
UPM1C391MPD6TD
Cap Aluminum Lytic 390uF 16V 20% (10 X 15mm) Radial 5mm 570mA 5000h 105°C Ammo
PackageRadial
Capacitance390uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1C391MPD6TD technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
10mm
Height - Seated (Max)
0.669inch
Impedance
100mR
Lead Pitch
0.197inch
Length
15mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
570mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C391MPD6TD Datasheet
Download the complete datasheet for Nichicon UPM1C391MPD6TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

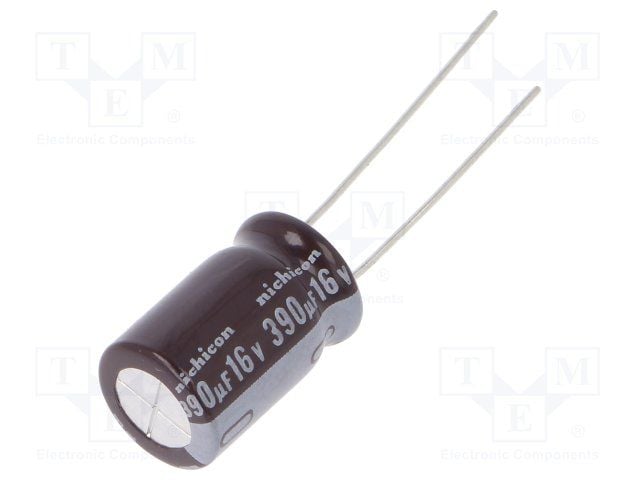

Product Images
