Aluminum electrolytic capacitor, polarized, 470µF capacitance with a 20% tolerance, rated for 16V DC. Features a radial leaded, through-hole mount package with a 5mm lead pitch and 0.6mm lead diameter. Operates across a wide temperature range from -55°C to 105°C, offering 5000 hours of life at rated conditions. Includes a 90mΩ impedance, 615mA ripple current capability, and 225.6µA leakage current. RoHS compliant.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UPM1C471MPD6TD technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dissipation Factor
0.16%
Height
15mm
Height - Seated (Max)
0.65inch
Impedance
90mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
225.6uA
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
615mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C471MPD6TD Datasheet
Download the complete datasheet for Nichicon UPM1C471MPD6TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

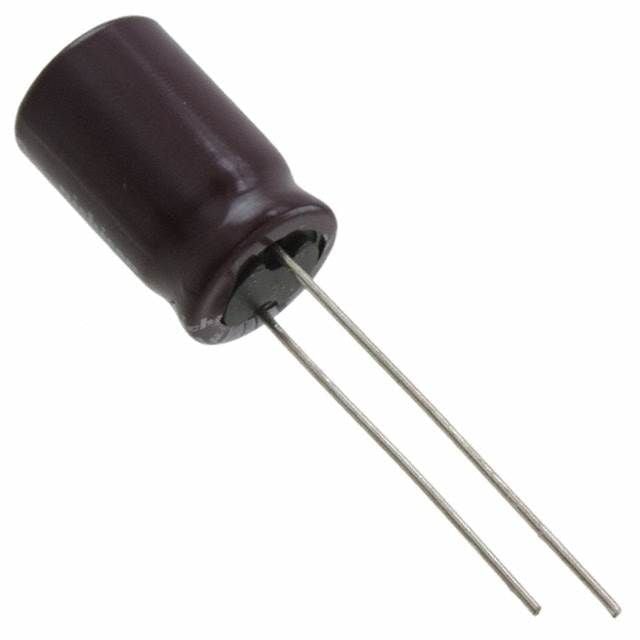

Product Images
