Aluminum electrolytic capacitor with 4700µF capacitance and 16V DC voltage rating. Features a 20% tolerance, 105°C maximum operating temperature, and 5000-hour life expectancy. Ripple current capability is 2.41A, with an impedance of 20mΩ. Radial package with 7.5mm lead pitch, measuring 16mm in diameter and 35.5mm in height.
PackageRadial
Capacitance4.7mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1C472MHD technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Diameter
16mm
Dissipation Factor
0.16%
Features
General Purpose
Height
35.5mm
Height - Seated (Max)
1.476inch
Impedance
20mR
Lead Pitch
7.5mm
Leakage Current
2.256mA
Length
35.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.41A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C472MHD Datasheet
Download the complete datasheet for Nichicon UPM1C472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

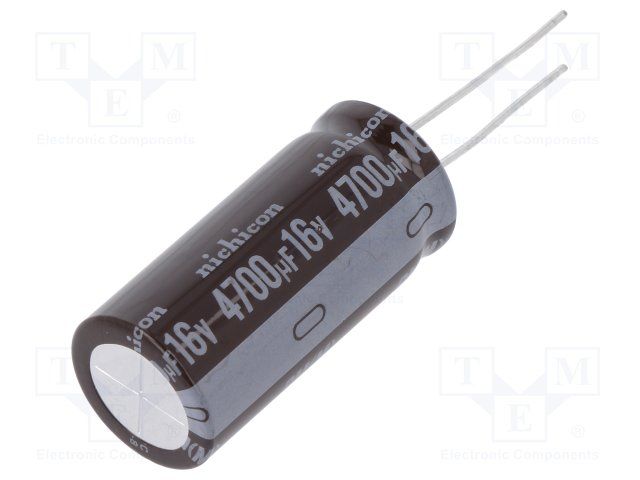

Product Images
