Nichicon
UPM1E272MHD6
Cap Aluminum Lytic 2700uF 25V 20% (18 X 25mm) Radial 7.5mm 2060mA 5000h 105°C Bulk
PackageRadial
Capacitance2.7mF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1E272MHD6 technical specifications.
General
Capacitance
2.7mF
Package/Case
Radial
Diameter
18mm
Height
25mm
Impedance
25mR
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
2.025mA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.06A
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1E272MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1E272MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

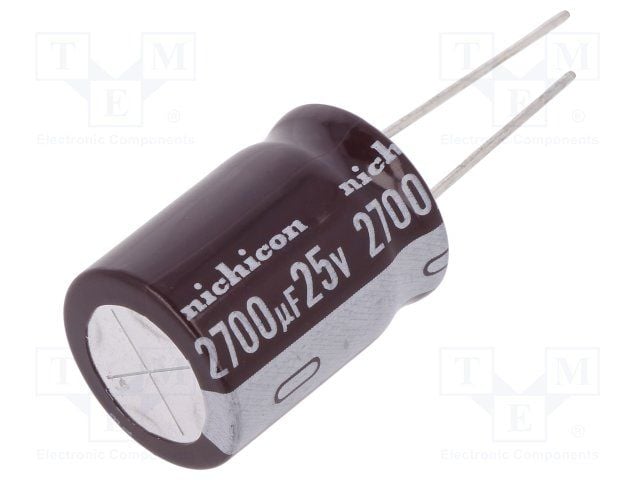

Product Images
