Aluminum electrolytic capacitor with 330µF capacitance and 25V DC rated voltage. Features 20% tolerance, 610mA ripple current, and 85mΩ impedance. Operating temperature range from -55°C to 105°C with a 3000-hour life expectancy. Radial package with 8mm diameter, 20mm height, and 3.5mm lead pitch for through-hole PCB mounting.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPM1E331MPD technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
20mm
Impedance
85mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
247.5uA
Length
20mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
610mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1E331MPD Datasheet
Download the complete datasheet for Nichicon UPM1E331MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

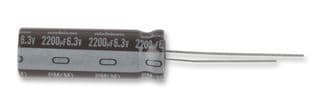

Product Images
