Aluminum electrolytic capacitor with 82µF capacitance and 25V DC rated voltage. Features 20% tolerance, 180mA ripple current, and 61.5µA leakage current. Designed for through-hole PCB mounting with a 2.5mm lead pitch and 0.5mm lead diameter. Operates from -55°C to 105°C with a 2000-hour life expectancy at rated conditions. Radial package measures 6.3mm in diameter and 11mm in height.
PackageRadial
Voltage25V
Capacitance82uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPM1E820MED technical specifications.
General
Capacitance
82uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
300mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
61.5uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
180mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1E820MED Datasheet
Download the complete datasheet for Nichicon UPM1E820MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

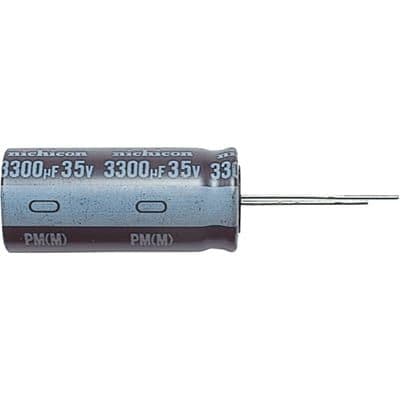

Product Images
