Aluminum electrolytic capacitor, 1000µF capacitance, 50V DC rated voltage, 20% tolerance. Features 1.73A ripple current, 30mΩ impedance, and 5000 hours life at 105°C. Radial package with 7.5mm lead pitch, 18mm diameter, and 25mm height. Through-hole mounting, RoHS compliant, and lead-free.
PackageRadial
Capacitance1mF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1H102MHD6 technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Diameter
18mm
Dissipation Factor
0.1%
Height
25mm
Height - Seated (Max)
1.063inch
Impedance
30mR
Lead Free
Lead Free
Lead Pitch
7.5mm
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.73A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1H102MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1H102MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

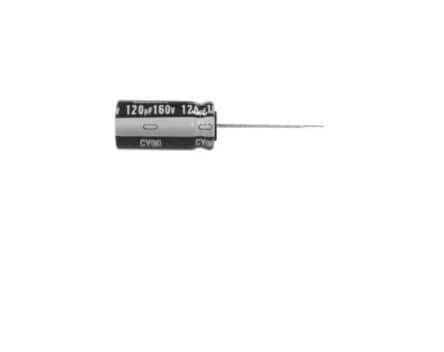

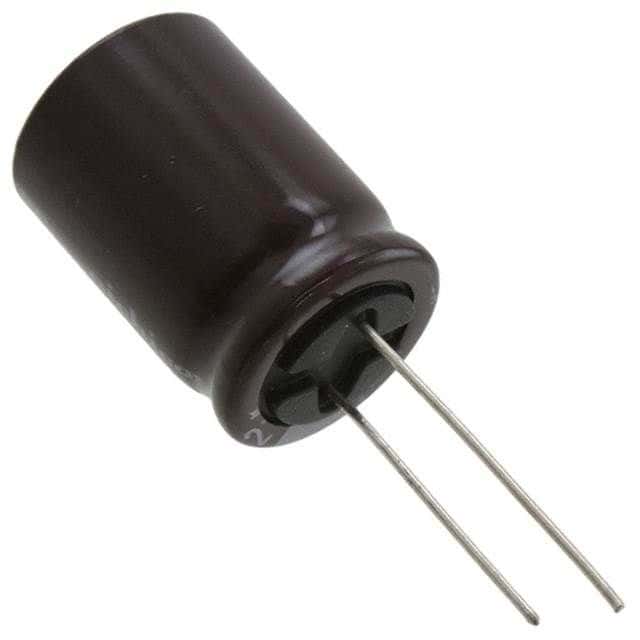

Product Images
