Nichicon
UPM1J181MHD6
Cap Aluminum Lytic 180uF 63V 20% (16 X 15mm) Radial 7.5mm 750mA 5000h 105°C Bulk
PackageRadial
Capacitance180uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1J181MHD6 technical specifications.
General
Capacitance
180uF
Package/Case
Radial
Diameter
16mm
Height
15mm
Impedance
80mR
Lead Pitch
7.5mm
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
750mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1J181MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1J181MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

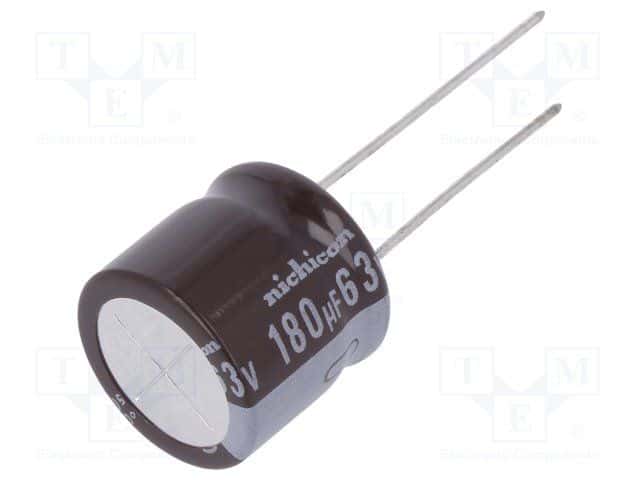

Product Images
