Nichicon
UPM1K271MHD6
Cap Aluminum Lytic 270uF 80V 20% (16 X 20mm) Radial 7.5mm 742mA 5000h 105°C Bulk
PackageRadial
Capacitance270uF
Voltage Rating80V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1K271MHD6 technical specifications.
General
Capacitance
270uF
Package/Case
Radial
Diameter
16mm
Height
20mm
Impedance
110mR
Lead Pitch
7.5mm
Leakage Current
648uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
742mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
80V
DC Rated Voltage
80V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1K271MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1K271MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

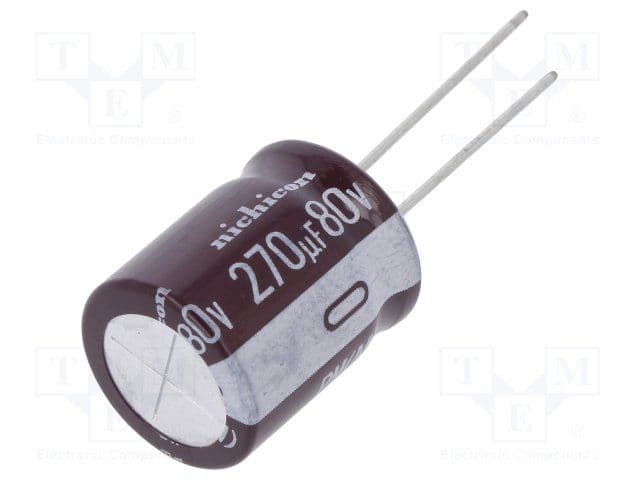

Product Images
