PackageRadial
Capacitance56uF
Voltage Rating80V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1K560MPD technical specifications.
General
Capacitance
56uF
Package/Case
Radial
Diameter
8mm
Height
20mm
Impedance
340mR
Lead Pitch
3.5mm
Leakage Current
134.4uA
Length
20mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
208mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
80V
DC Rated Voltage
80V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1K560MPD Datasheet
Download the complete datasheet for Nichicon UPM1K560MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

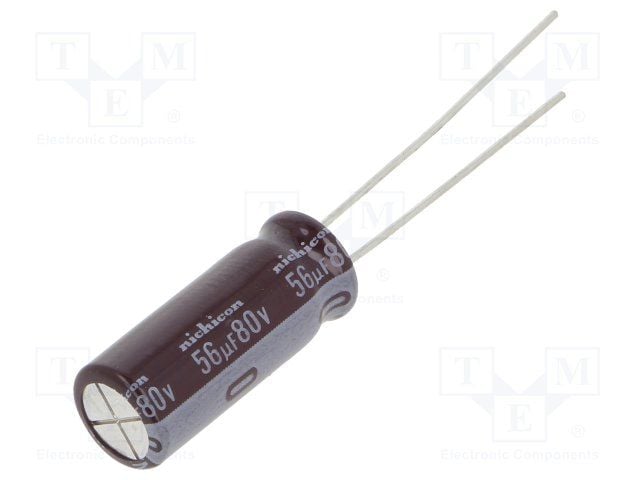

Product Images
