The Nichicon UPM1K680MPD is a 68uF radial through hole capacitor with a 20% tolerance and 80V voltage rating. It has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. The capacitor has a leakage current of 163.2uA and a ripple current of 264mA. It is packaged in a bulk package quantity of 200 and is RoHS compliant.
PackageRadial
Capacitance68uF
Voltage Rating80V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1K680MPD technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Height | 20mm |
| Impedance | 280mR |
| Lead Pitch | 5mm |
| Leakage Current | 163.2uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 264mA |
| RoHS Compliant | Yes |
| Series | UPM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 80V |
| DC Rated Voltage | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM1K680MPD Datasheet
Download the complete datasheet for Nichicon UPM1K680MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

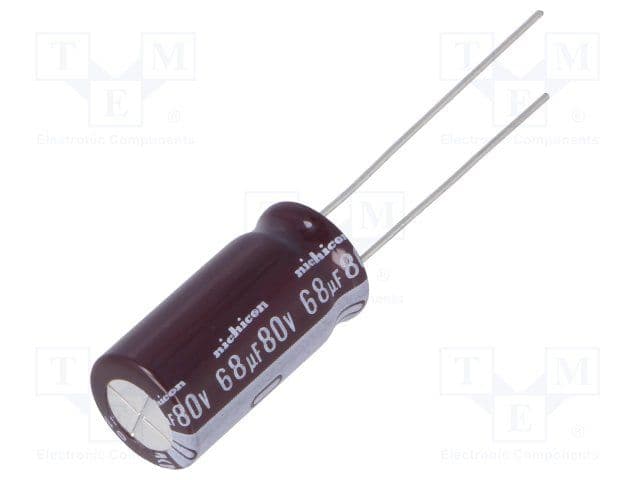

Product Images
