Aluminum electrolytic capacitor with 1500µF capacitance and 35V DC rated voltage. Features 20% tolerance, 1.84A ripple current, and 28mΩ impedance. Radial package with 7.5mm lead pitch, 0.8mm lead diameter, and 18mm diameter. Operates from -55°C to 105°C with a 5000-hour life expectancy. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance1.5mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UPM1V152MHD6 technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
28mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
1.575mA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.84A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1V152MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1V152MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

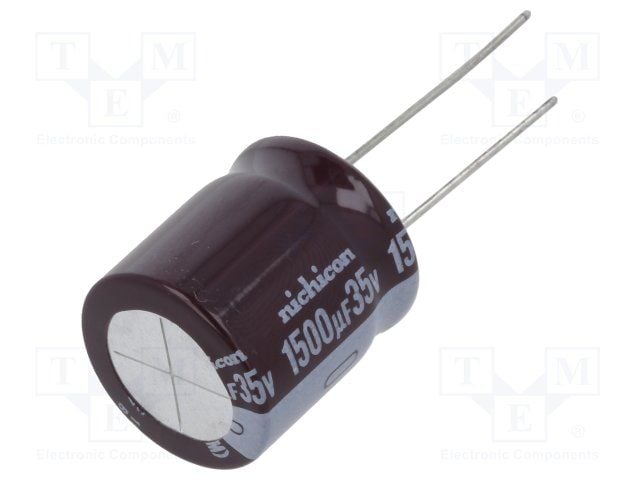

Product Images
