Nichicon
UPM1V182MHD6
Cap Aluminum Lytic 1800uF 35V 20% (18 X 25mm) Radial 7.5mm 2060mA 5000h 105°C Bulk
PackageRadial
Capacitance1.8mF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1V182MHD6 technical specifications.
General
Capacitance
1.8mF
Package/Case
Radial
Diameter
18mm
Height
25mm
Height - Seated (Max)
1.063inch
Impedance
25mR
Lead Pitch
7.5mm
Leakage Current
1.89mA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.06A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1V182MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1V182MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

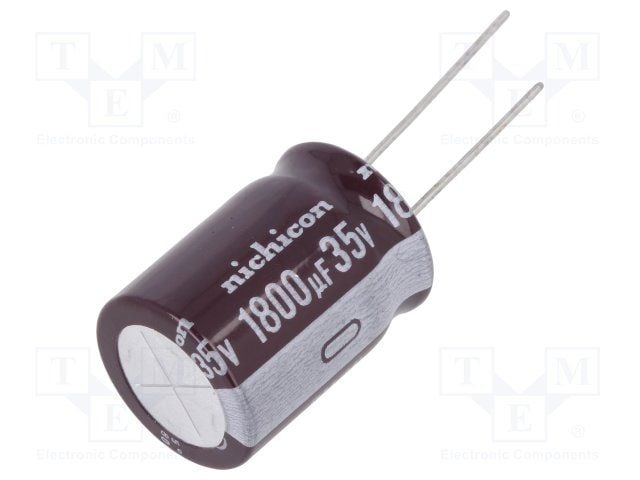

Product Images
