Aluminum electrolytic capacitor, 27µF capacitance, 35V DC rated voltage, 20% tolerance. Features radial mounting, 2mm lead pitch, and 0.5mm lead diameter. Operates from -55°C to 105°C with a 2000-hour life at 105°C. Offers 99mA ripple current, 600mΩ impedance, and 28.35µA leakage current. Packaged in bulk.
PackageRadial
Voltage35V
Capacitance27uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UPM1V270MDD technical specifications.
General
| Capacitance | 27uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.12% |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Impedance | 600mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 28.35uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 99mA |
| RoHS Compliant | Yes |
| Series | PM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM1V270MDD Datasheet
Download the complete datasheet for Nichicon UPM1V270MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

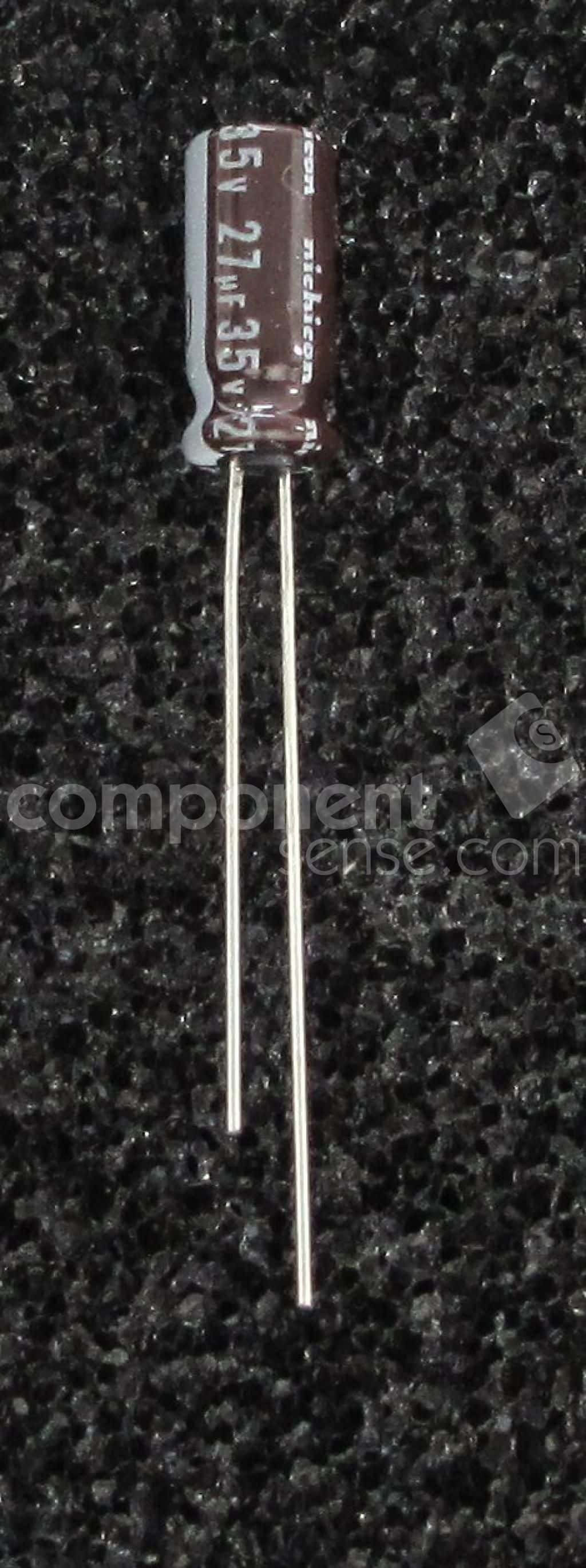

Product Images
