Nichicon
UPM1V391MHD6
Cap Aluminum Lytic 390uF 35V 20% (12.5 X 15mm) Radial 5mm 825mA 5000h 105°C Bulk
PackageRadial
Capacitance390uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1V391MHD6 technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
12.5mm
Height
15mm
Impedance
60mR
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
409.5uA
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
825mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1V391MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1V391MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

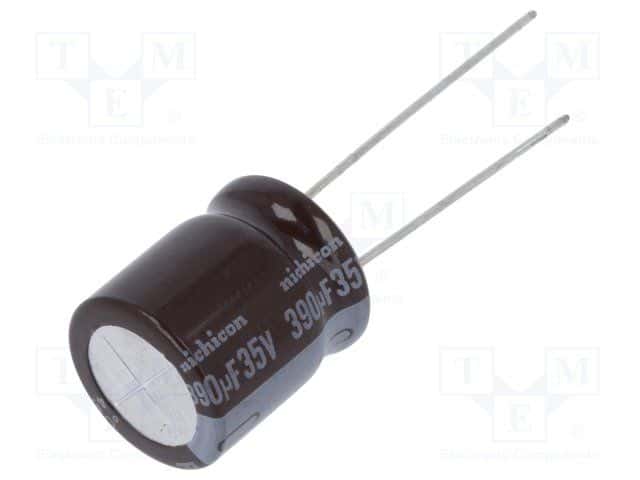

Product Images
