PackageRadial
Capacitance390uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1V391MPD technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
10mm
Height
25mm
Impedance
55mR
Lead Pitch
5mm
Leakage Current
409.5uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
955mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1V391MPD Datasheet
Download the complete datasheet for Nichicon UPM1V391MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

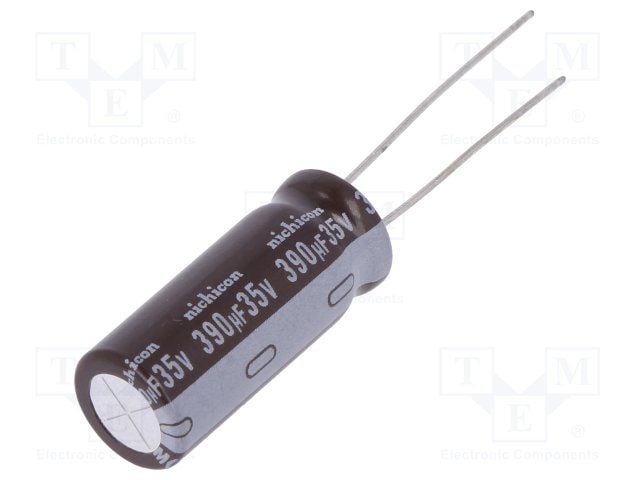

Product Images
