Nichicon
UPM2A121MHD
Cap Aluminum Lytic 120uF 100V 20% (12.5 X 25mm) Radial 5mm 519mA 5000h 105°C Bulk
PackageRadial
Capacitance120uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A121MHD technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Diameter
12.5mm
Height
25mm
Impedance
130mR
Lead Pitch
5mm
Leakage Current
360uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
519mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A121MHD Datasheet
Download the complete datasheet for Nichicon UPM2A121MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

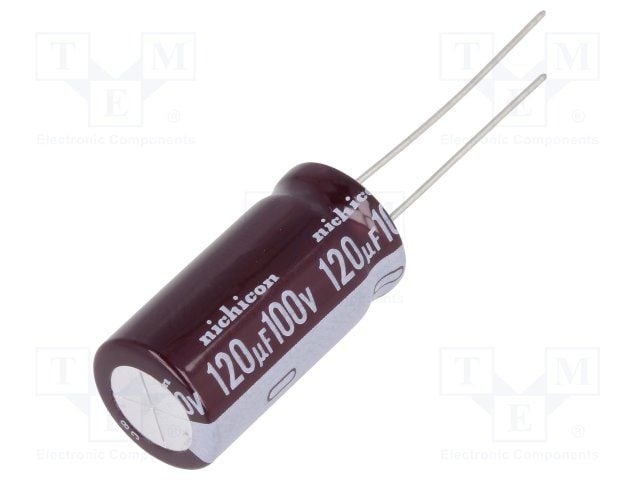

Product Images
