Nichicon
UPM2A121MHD6
Cap Aluminum Lytic 120uF 100V 20% (16 X 15mm) Radial 7.5mm 531mA 5000h 105°C Bulk
PackageRadial
Capacitance120uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A121MHD6 technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Diameter
16mm
Height
15mm
Impedance
140mR
Lead Pitch
7.5mm
Leakage Current
360uA
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
531mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A121MHD6 Datasheet
Download the complete datasheet for Nichicon UPM2A121MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

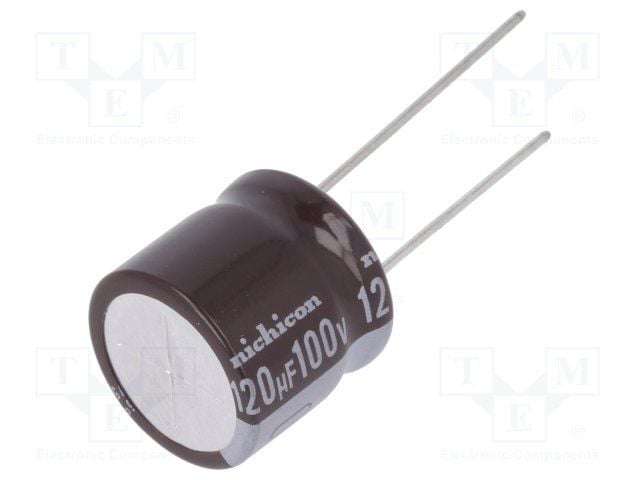

Product Images
