Nichicon
UPM2A331MHD6TN
Cap Aluminum Lytic 330uF 100V 20% (18 X 25mm) Radial 7.5mm 1080mA 5000h 105°C Ammo
PackageRadial
Capacitance330uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A331MHD6TN technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
18mm
Impedance
70mR
Lead Pitch
7.5mm
Length
25mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
250
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A331MHD6TN Datasheet
Download the complete datasheet for Nichicon UPM2A331MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

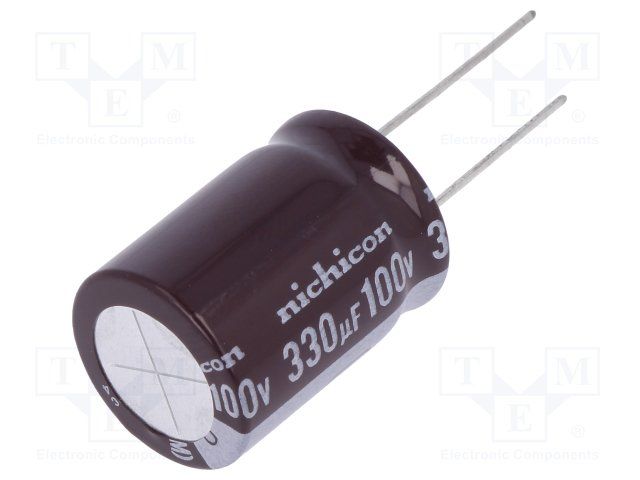

Product Images
