PackageRadial
Capacitance56uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A560MPD technical specifications.
General
Capacitance
56uF
Package/Case
Radial
Diameter
10mm
Height
20mm
Impedance
240mR
Lead Pitch
5mm
Leakage Current
168uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
274mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A560MPD Datasheet
Download the complete datasheet for Nichicon UPM2A560MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

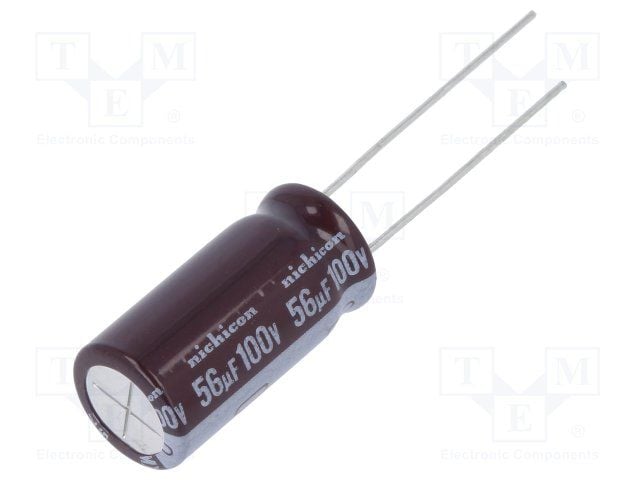

Product Images
