PackageRadial
Capacitance3.3uF
Voltage Rating160V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2C3R3MPD technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Diameter
10mm
Height
12.5mm
Lead Pitch
5mm
Leakage Current
92.8uA
Length
12.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
50mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2C3R3MPD Datasheet
Download the complete datasheet for Nichicon UPM2C3R3MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

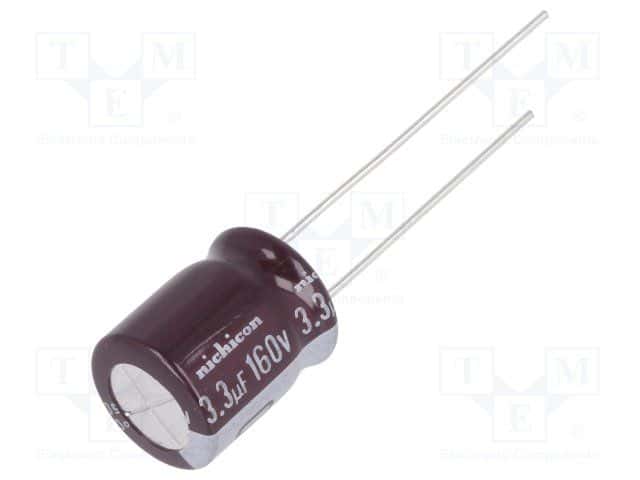

Product Images
