PackageRadial
Capacitance10uF
Voltage Rating315V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2F100MHD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Diameter
12.5mm
Height
20mm
Lead Pitch
5mm
Leakage Current
226uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
98mA
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
315V
DC Rated Voltage
315V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2F100MHD Datasheet
Download the complete datasheet for Nichicon UPM2F100MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

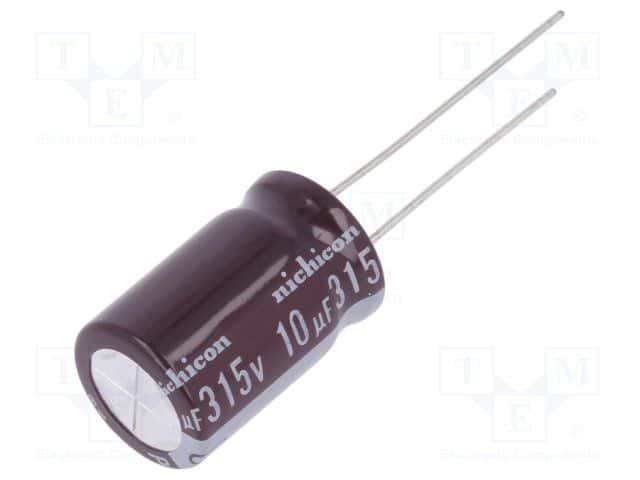

Product Images
