This Nichicon UPM series aluminum electrolytic capacitor has a capacitance of 3.3uF and a voltage rating of 315V. It is available in a radial package with a diameter of 10mm and a height of 15mm. The capacitor is rated for a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. It is RoHS compliant and suitable for use in through-hole mounting applications.
PackageRadial
Capacitance3.3uF
Voltage Rating315V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2F3R3MPD technical specifications.
General
| Capacitance | 3.3uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Height | 15mm |
| Lead Pitch | 5mm |
| Leakage Current | 141.58uA |
| Length | 15mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 52mA |
| RoHS Compliant | Yes |
| Series | UPM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 315V |
| DC Rated Voltage | 315V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPM2F3R3MPD Datasheet
Download the complete datasheet for Nichicon UPM2F3R3MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

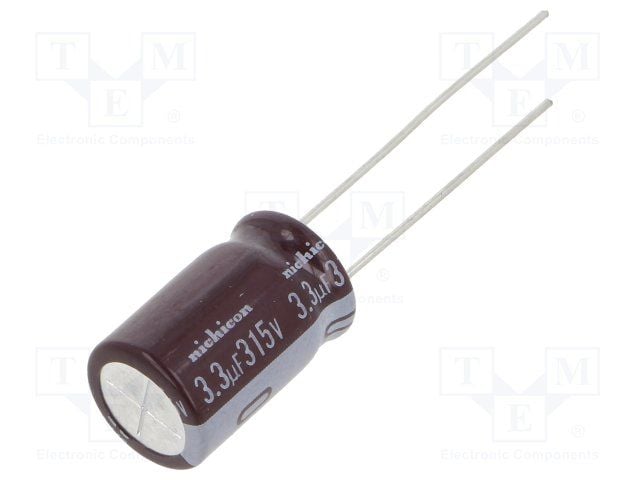

Product Images
