Nichicon
UPS0J332MHD1TO
Cap Aluminum Lytic 3300uF 6.3V 20% (12.5 X 20mm) Radial 5mm 1250mA 3000h 105°C Ammo
PackageRadial
Capacitance3.3mF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS0J332MHD1TO technical specifications.
General
Capacitance
3.3mF
Package/Case
Radial
Diameter
12.5mm
Height - Seated (Max)
0.866inch
Impedance
75mR
Lead Pitch
0.197inch
Length
20mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
1.25A
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS0J332MHD1TO Datasheet
Download the complete datasheet for Nichicon UPS0J332MHD1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

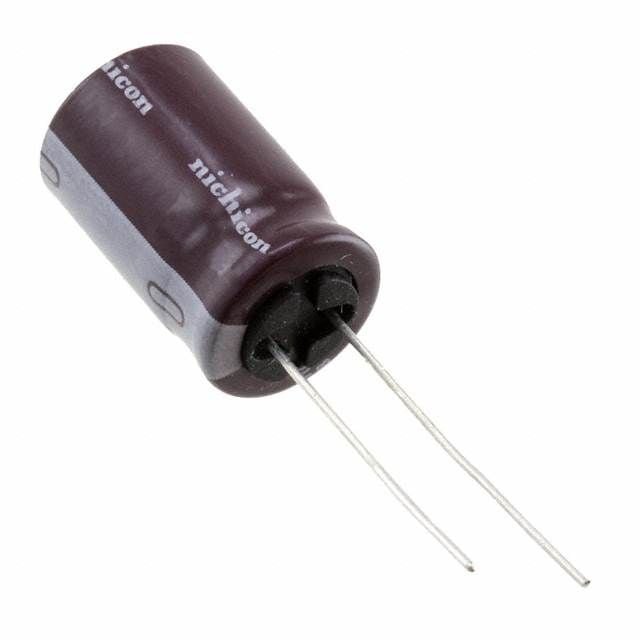

Product Images
