Aluminum electrolytic capacitor with 330µF capacitance and 10V DC rated voltage, featuring 20% tolerance. This radial component offers a 410mA ripple current capability and a low impedance of 280mΩ. Designed for through-hole mounting, it operates from -55°C to 105°C with a rated life of 2000 hours. The package dimensions are 8mm diameter by 11.5mm height with a 3.5mm lead pitch.
PackageRadial
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UPS1A331MPD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 11.5mm |
| Height - Seated (Max) | 0.512inch |
| Impedance | 280mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 99uA |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 410mA |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPS1A331MPD Datasheet
Download the complete datasheet for Nichicon UPS1A331MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

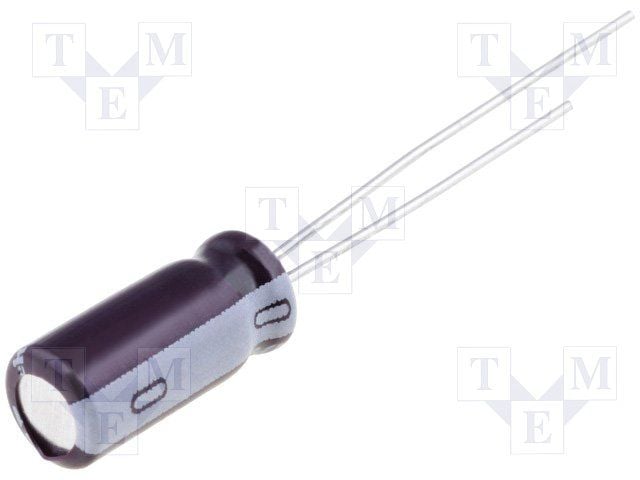

Product Images
