Aluminum electrolytic capacitor, 470µF capacitance, 10V DC rated voltage, 20% tolerance. Features a 410mA ripple current, 280mΩ impedance, and 141µA leakage current. Radial package with 3.5mm lead pitch, 8mm diameter, and 11.5mm height. Operates from -55°C to 105°C with a 2000-hour life rating. RoHS compliant.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UPS1A471MPD technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
280mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Leakage Current
141uA
Length
11.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
410mA
Ripple Current (AC)
410mA
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1A471MPD Datasheet
Download the complete datasheet for Nichicon UPS1A471MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

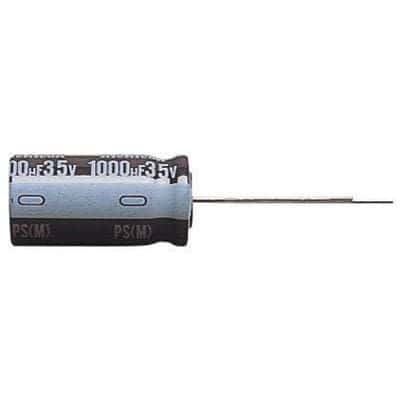

Product Images
