Nichicon's UPS1E331MPD1TD is a 25V 330uF radial through hole aluminum electrolytic capacitor with a tolerance of 20%. It has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. The capacitor is constructed with a cylindrical design and has a diameter of 10mm and a height of 12.5mm. It is packaged in cut tape and is RoHS compliant.
PackageRadial
Capacitance330uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UPS1E331MPD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UPS1E331MPD1TD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Height | 12.5mm |
| Impedance | 190mR |
| Lead Pitch | 5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ripple Current | 600mA |
| RoHS Compliant | Yes |
| Series | UPS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPS1E331MPD1TD Datasheet
Download the complete datasheet for Nichicon UPS1E331MPD1TD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

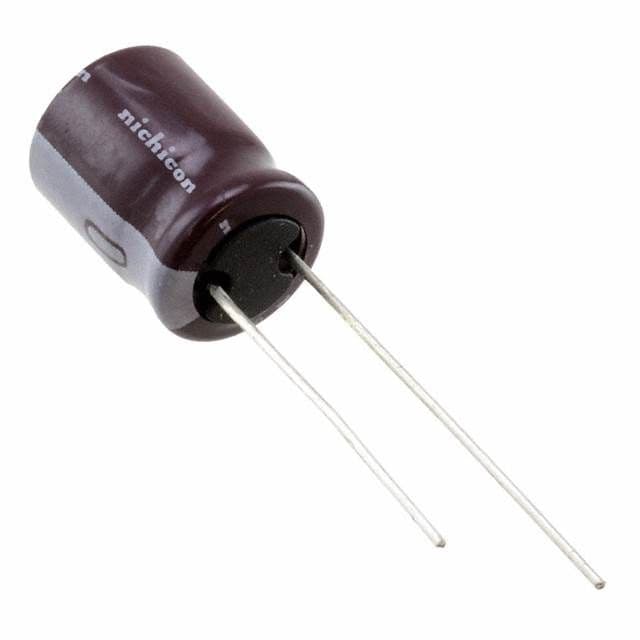

Product Images
