Aluminum electrolytic capacitor with 100µF capacitance and 50V DC rating. Features 20% tolerance, 340mA ripple current, and low impedance of 360mΩ. Radial package measures 8mm diameter by 11.5mm height with a 3.5mm lead pitch. Designed for through-hole PCB mounting, operating from -55°C to 105°C with a 2000-hour life expectancy.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UPS1H101MPD1TD technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
360mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
150uA
Length
11.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
340mA
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1H101MPD1TD Datasheet
Download the complete datasheet for Nichicon UPS1H101MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

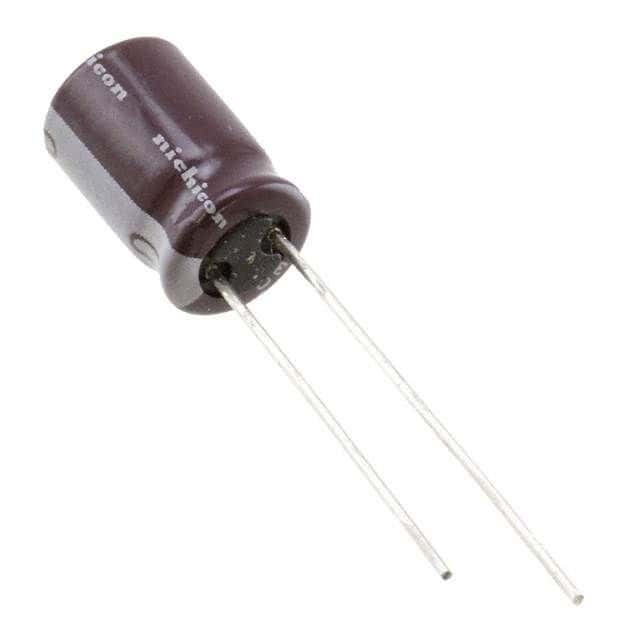

Product Images
