Aluminum electrolytic capacitor, 470µF capacitance, 50V voltage rating, and 20% tolerance. Features a radial package with 5mm lead pitch, 12.5mm diameter, and 20mm height. Offers 1.1A ripple current, 130mΩ impedance, and 705µA leakage current. Operates from -55°C to 105°C with a 3000-hour life expectancy. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance470uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UPS1H471MHD1TO technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
130mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
705uA
Length
20mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
1.1A
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1H471MHD1TO Datasheet
Download the complete datasheet for Nichicon UPS1H471MHD1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

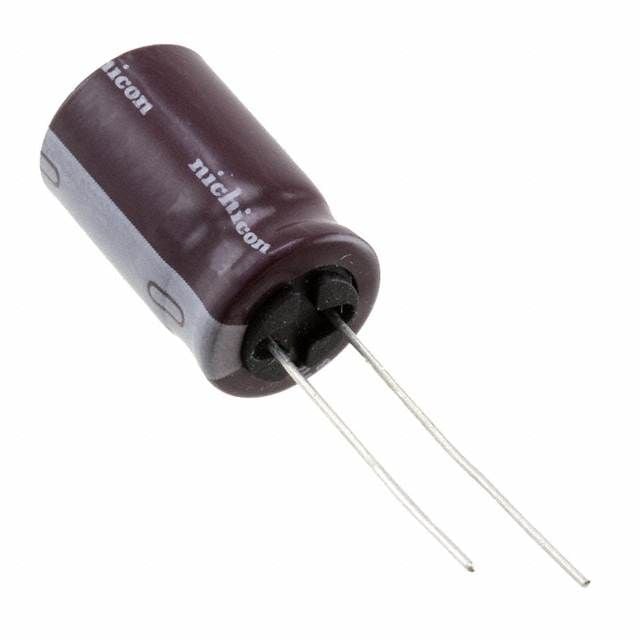

Product Images
