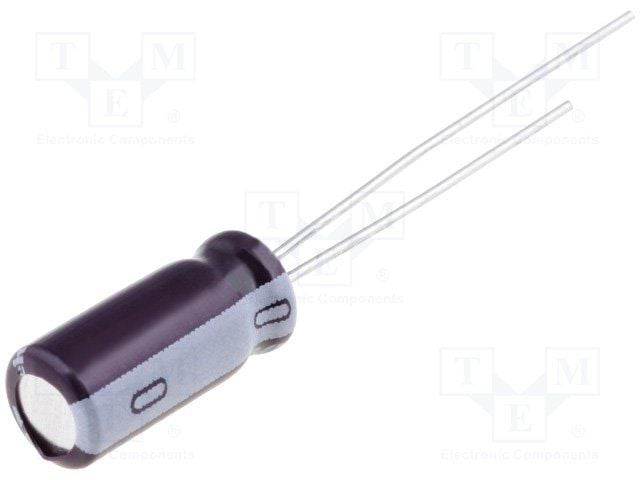

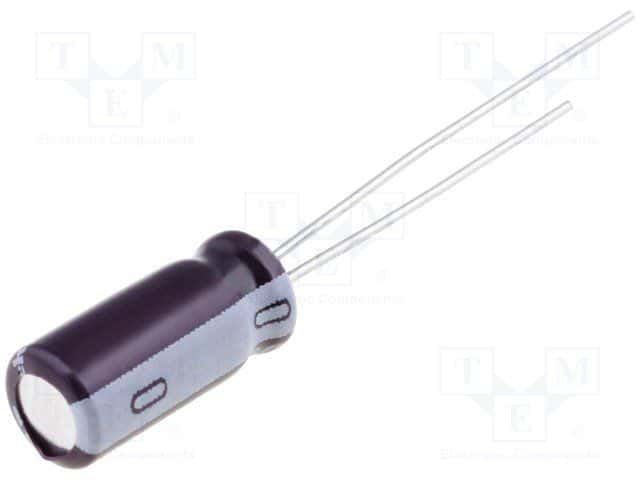

The Nichicon UPS1J151MPD1TD is an aluminum electrolytic capacitor with a capacitance of 150uF and a voltage rating of 63V. It has a tolerance of 20% and an impedance of 250mR. The capacitor is packaged in a radial configuration with a diameter of 10mm and a length of 16mm, and is designed for through-hole mounting. It operates over a temperature range of -55°C to 105°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPS1J151MPD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Impedance | 250mR |
| Length | 16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | UPS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| RoHS | Compliant |
