Aluminum electrolytic capacitor, 22µF capacitance, 63V voltage rating, and 20% tolerance. Features a radial package with 2.5mm lead pitch, 0.5mm lead diameter, and dimensions of 6.3mm diameter by 11mm height. Offers 180mA ripple current, 980mΩ impedance, and a leakage current of 41.58µA. Designed for through-hole PCB mounting, operating from -55°C to 105°C with a 2000-hour life rating.
PackageRadial
Voltage63V
Capacitance22uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon UPS1J220MED technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
980mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
41.58uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
180mA
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
63V
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1J220MED Datasheet
Download the complete datasheet for Nichicon UPS1J220MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

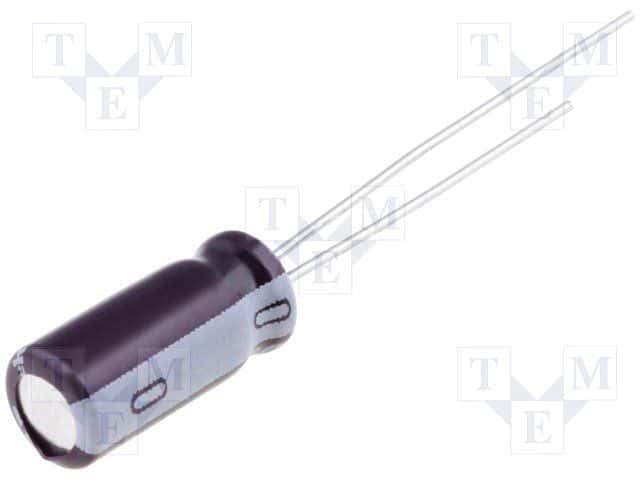

Product Images
